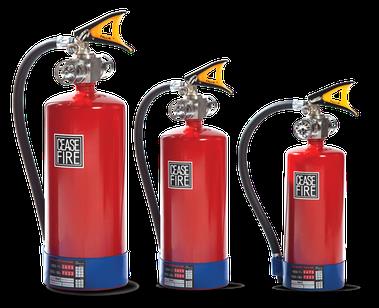

Stored pressure Map-90-4kg :-Gross Weight:8.41 KG
Empty Weight: 4.41 KG
Total Height:495 MM
Diameter of Container:140 MM
Discharge time:13 Seconds
Discharge Mechanism: Controllable &
Automatic
Throw/Range:4Meters, 9.29 Square meter in Automatic operation mode
Applicable on:Class A, B, C and electrically started Fire
Fire Rating EN3-(A Rating:13A), (B Rating:70B)
Fire rating BIS-(A Rating: 2A)(B Rating:70B)
Can Construction: Deep drawn &
MIG welded
Valve Construction :Forging &
Machining
Internal Coating of Can : Epoxy Powder coating
External Coating of Can : Epoxy Polyester Powder coating
Tests: Helium Leak Detection
Sheet metal thickness: 1.60MM
Material Of Hose: EPDM
Length of Hose: 500MM.Certifications:Confirms to IS:15683 &
EN:3.
No of items per pack | 5 year |
Features |
|
Weight | 4kg |
Material | 4kg |
Model name | CF-000655 |
Ink color | CF-000655 |
