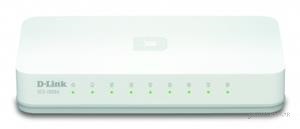

D-Link 8 Ports Switch - Des 1008A

  • Near
D-Link 8 Ports Switch - Des 1008A
Model Item No : Des 1008A
Sku : P59770B204D7E5
Quantity per pack : 1 pieces
Dimensions : 128(W) x 68.5(D) x 25.4(H) mm
Minimum Order Quantity : 1
› See more product details
This product is not available in your locality currently

Product Description

Auto-sensing 10/100 ports The DES-1008A uses auto-sensing 10/100 Mbps ports, allowing a small workgroup to flexibly connect to Ethernet and Fast Ethernet devices to create an integrated network. These ports detect the network speed and auto-negotiate between 10BASE-T and 100BASE-TX, as well as between full and half-duplex, allowing you to get the maximum speed possible for each device connected to your network. Auto MDI/MDIX CrossOver All ports support automatic MDI/MDIX crossover, eliminating the need for crossover cables or uplink ports. Each port can be plugged directly to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables. Flow Control for Secure Transmission 802.3x flow control on each port minimizes dropped packets when the port’s receiving buffer is full. This gives you a more reliable connection for all of your connected devices.

Product Information

Model item no Des 1008A
Dimensions 128(W) x 68.5(D) x 25.4(H) mm
Quantity per pack 1 pieces
Power consumption Power On (Standby): DC input: 0.3 watts. AC input: 0.5 watts. Maximum: DC input: 1.6 watts. AC input: 2.5 watts.
Operating temperature 0 to 40° C
Standards IEEE 802.3 10BASE-T Ethernet (twisted-pair copper) IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper) ANSI/IEEE 802.3 NWay auto-negotiation IEEE 802.3x flow control.
Interface 8* 10/100 ports
Mac address table 1 K
Certifications FCC Class B ICES-003 Class B CE Class B C-Tick Class B cUL LVD.
Storage temperature (-)10 to 70° C
Operating humidity 10% to 90% RH non-condensing
Ports 8.0
Ram buffer 57 KBytes per device
Heat dissipation Power On (Standby): AC input: 1.706 BTU/h. Maximum: AC input: 8.53 BTU/h.
Packet filtering and forwarding rate + Ethernet: 14880 pps per port.+ Fast Ethernet: 148800 pps per port.
