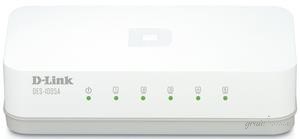

Model Item No : Des 1005A
Sku : P59770B204DFC0
Quantity per pack : 1 pieces
Dimensions : 97(W) x 79(D) x 28(H) mm
Minimum Order Quantity : 1
Product Description
Auto-sensing 10/100 ports.
The DES-1005A uses auto-sensing 10/100 Mbps ports, allowing a small workgroup to flexibly connect to Ethernet and Fast Ethernet devices to create an integrated network. These ports detect the network speed and auto-negotiate between 10BASE-T and 100BASE-TX, as well as between full and half-duplex, allowing you to get the maximum speed possible for each device connected to your network.
Auto MDI/MDIX CrossOver
All ports support automatic MDI/MDIX crossover, eliminating the need for crossover cables or uplink ports. Each port can be plugged directly to a server, hub
router, or switch using regular straight-through twisted-pair Ethernet cables.
Flow Control for Secure Transmission 802.3x flow control on each port minimizes dropped packets when the port’s receiving buffer is full. This gives you a more reliable connection for all of your connected devices.
The DES-1005A uses auto-sensing 10/100 Mbps ports, allowing a small workgroup to flexibly connect to Ethernet and Fast Ethernet devices to create an integrated network. These ports detect the network speed and auto-negotiate between 10BASE-T and 100BASE-TX, as well as between full and half-duplex, allowing you to get the maximum speed possible for each device connected to your network.
Auto MDI/MDIX CrossOver
All ports support automatic MDI/MDIX crossover, eliminating the need for crossover cables or uplink ports. Each port can be plugged directly to a server, hub
router, or switch using regular straight-through twisted-pair Ethernet cables.
Flow Control for Secure Transmission 802.3x flow control on each port minimizes dropped packets when the port’s receiving buffer is full. This gives you a more reliable connection for all of your connected devices.
Product Information
| Model item no | Des 1005A |
| Dimensions | 97(W) x 79(D) x 28(H) mm |
| Quantity per pack | 1 pieces |
| Power consumption | Power On (Standby): DC input: 0.45 watts AC input: 1.25 watts Maximum: DC input: 2.46 watts AC input: 3.5 watts. |
| Operating temperature | 0 to 40° C |
| Standards | IEEE 802.3 10BASE-T Ethernet (twisted-pair copper). IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper). ANSI/IEEE 802.3 NWay auto-negotiation. IEEE 802.3x flow control. |
| Mac address table | 2 K |
| Certifications | FCC Class B CE Class B uUL C-Tick Class B CB. |
| Operating humidity | 10% to 90% RH non-condensing |
| Ports | 5.0 |
| Ram buffer | 48KBytes per device |
| Transmission method | Store-and-forward |
| Heat dissipation | Power On (Standby): AC input: 4.26 BTU/h Maximum: AC input: 11.945 BTU/h. |
